Betta Beta

Someone asked me why I’m switching to a Beta engine. I’ve heard a few interesting questions so I figured I’d try to answer some of the tougher ones here.

The Basics

Yanmar doesn’t even make 3GM30F engines any more, so the natural upgrade from Yanmar would be the 3YM30. While the 3GM30F has 27 horsepower, the 3YM30 boasts 29HP:

3GM30F3YM30Beta 30
Power (@3600RPM)24hp29hp30hp
Alternator60A70A
Optional Alternator80A120A
Okay so I’m already sort of sold on the alternator. I did a bunch of upgrade work to improve the alternator on the 3GM30F with limited success, probably because the engines were so old, but I’d really rather use a stock setup, and 120A times two engines is 240A of power (over 2800W!). This is good up to about 400AH of lithium, and will run the watermaker or a small marine ac from either engine.

Performance Curve

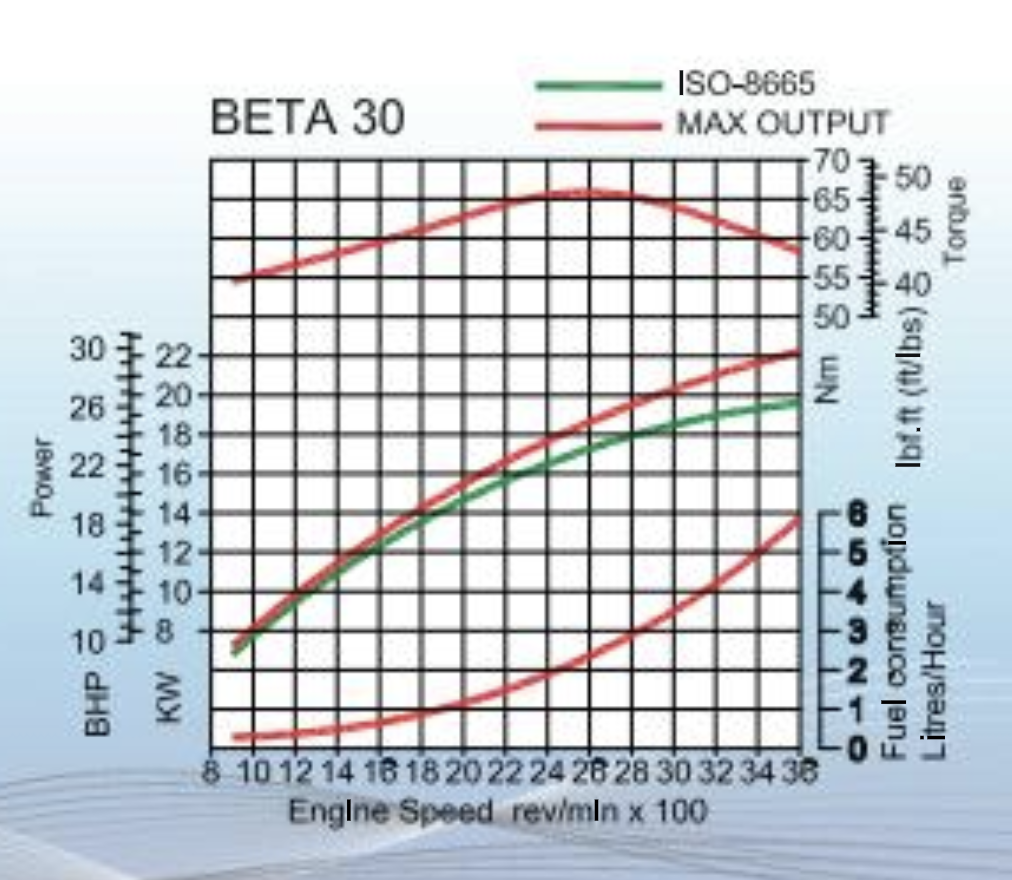

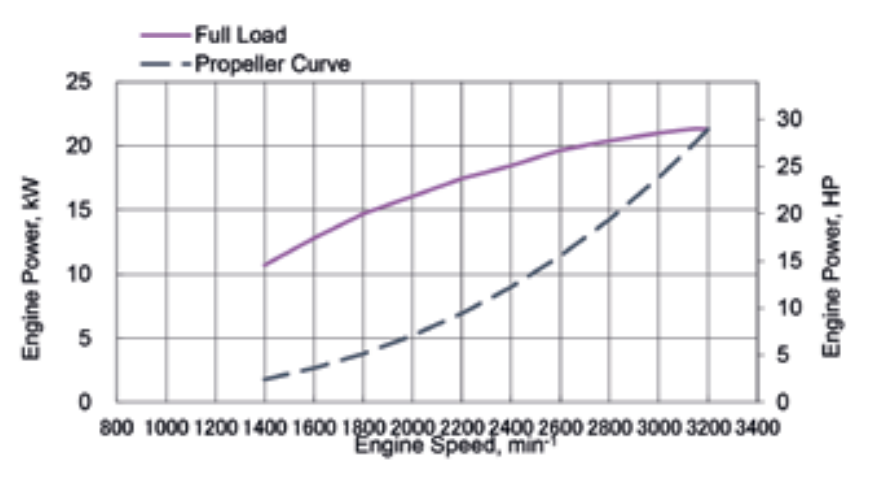

While the horsepower seems the same, what’s more important is the actual power curve. This is because nobody really runs the engine at maximum RPM because it consumes way too much fuel (more on that later) and is really hard on the engine. So let’s look at the performance at 2400 RPM, which is what I expect to cruise at. Here are the performance charts:

So here is the upshot at 2400 RPM:

3GM30F3YM30Beta 30
HP@2200112322
HP@2400122524

Fuel Consumption

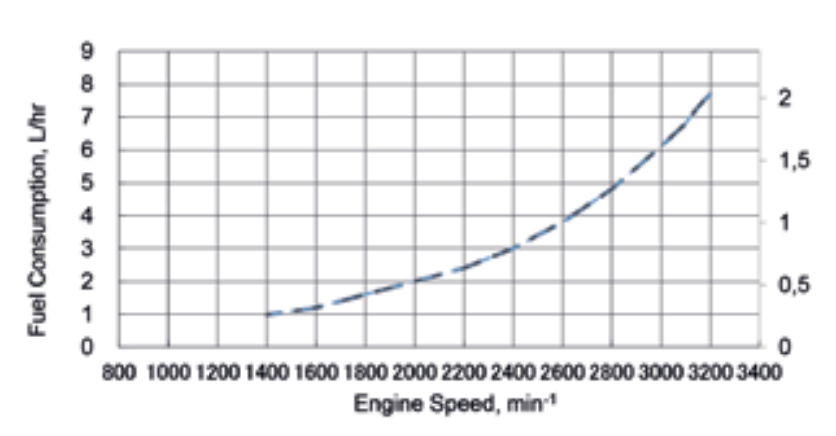

Both new engines produce very similar horsepower in these ranges, and about double what the old 3GM30F produced. But let’s look at fuel consumption! Yanmar puts this in a different graph:

AHA! So at 2400 RPM, the Beta sips 2 liters per hour, while the new Yanmar slurps 3. This is no small difference. Even better, at 2200 RPM, it’s 1.5LPH vs 2.4LPH. Let’s convert this to range, assuming 5 knots under a single engine at 2200 RPM. Each fuel tank is 60G, so that’s 151 hours vs 95 hours, or 755nm vs 475nm. A wise skipper would alternate engines, giving a total range of about 1500nm (1720 miles) vs under 1000nm (1150 miles). It’s 2300 miles to Hawaii, so assuming you motored the whole way (which doesn’t happen) you would need another 60 gallons on the beta (which happens to be what I have in containers) versus 180 gallons. Good luck storing that somewhere.

Just for completeness, although the graphs are hard to come by, my best guess for consumption of the old 3GM30F is 2.7LPH, with only 11 horsepower to show for that.

Parts

I have heard “go Yanmar because there are dealers everywhere.” While that might be true, the dealers usually have really limited parts, and have to import them. So the only real plus is that you might find an import agent easier. But you pay a premium to do it. Let’s assume you need a new heat exchanger. For Yanmar, that will cost you over $2000 from my best supplier. The heat exchanger on the beta is part of the exhaust manifold, and you can replace the whole exhaust manifold for less than that.
